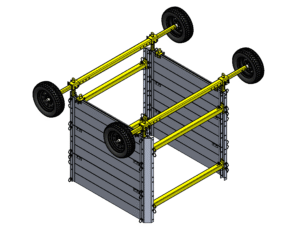

Orange MAPS
Modular Aluminum Panel Systems – Orange
The Pacific Shoring Products Orange Modular Aluminum Panel System consists of modular tongue and groove panels, corner posts, and adjustable steel spreaders. The system can be constructed in 2-sided, 3-sided, and 4-sided configurations. This modular system allows for the construction and simplified modifications of the box at the job site. Hydraulic power struts are also available, allowing the modular aluminum panel system to become a hydraulic shoring system. Modular panel lengths are available from 2 ft. to 16 ft. long. Corner posts vary in size from 2 ft. to 12 ft. Boxes may be stacked and have allowable depths up to 25 ft. in C-80 Soil.

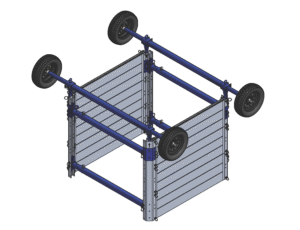

Red-Blue MAPS
Modular Aluminum Panel Systems – Red-Blue
The Pacific Shoring Products Red-Blue Modular Aluminum Panel System is an aluminum shoring system consisting of tongue and groove style panels, corner posts, and adjustable struts. The system can be constructed in 2-sided, 3-sided, and 4-sided configurations.
Red-Blue MAPS Sheeting Guide
MAPS Sheeting Guide – Red-Blue

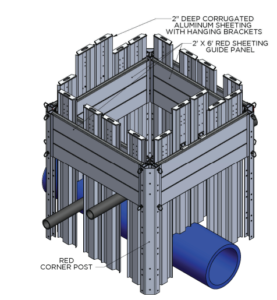

MAPS Sheeting Guide – Red-BlueThe Pacific Shoring Modular Buildable Box Sheeting Guide is an aluminum sheet pile guide system that fits in place
of one of the buildable box panels. This allows a line of sheet piles to be placed up to and over obstructions such as
cross trench lines. The guide frame may be used at one or multiple wall lines. The sheeting can be installed by hand
and may be skipped or interlocked provided there is no sloughing or raveling through the cracks. There are filler
panels that fit in the corners where the sheeting ends. The sheeting guide frame comes in all lengths that modular
panels are available in.
Red MAPS Accessories
Modular Aluminum Panel Systems Hand Rail System – Red
Modular Aluminum Panel Systems Hand Rail System – RedThe Pacific Shoring Hand Rails are an additional structure that can be added to shoring boxes by use of extended corners. When properly installed, the hand rails extend 42” from the top of the excavation. The top of the box acts as a kick guard. A gate can be used which measures 2ft wide.
Red MAPS Cutouts
Modular Aluminum Panel Systems Cutout – Red
Modular Aluminum Panel Systems Cutout – RedThe Pacific Shoring Modular Buildable Box Cutouts – Red is a welded smooth wall assembly with a cutout ranging from 2 to 4 feet in width and height. These panel assemblies fit in place of modular aluminum buildable box panels. Red Buildable box cutouts can be used at one or multiple wall lines.
Red MAPS Sheeting Guide
Modular Aluminum Panel Systems Sheeting Guide – Red
Modular Aluminum Panel Systems Sheeting Guide – RedThe Pacific Shoring Modular Buildable Box Sheeting Guide is an aluminum sheet pile guide system that fits in place of one of the buildable box panels. This allows a line of sheet piles to be placed up to and over obstructions such as cross trench lines. The guide frame may be used at one or multiple wall lines. The sheeting can be installed by hand and may be skipped or interlocked provided there is no sloughing or raveling through the cracks. There are filler panels that fit in the corners where the sheeting ends. The sheeting guide frame comes in all lengths that modular panels are available in.
Red-Blue MAPS Davit Arm Adapter
Red-Blue MAPS Davit Arm Adapter
Red-Blue MAPS Davit Arm AdapterThe Pacific Shoring Products Davit Arm Adapter allows the Xtripa IN-2482 Shoring Adapter and the Xtripa IN-2483 Davit Arm to be utilized with our Modular Aluminum Panel Systems. The steel davit arm adapter protects the aluminum panel sections from damage while providing a robust mounting surface for the Xtripa IN-2482 Shoring Adapter. The Xtripa system is part of a personal protection equipment system for fall protection, work positioning, or rescue, for use in confined spaces.

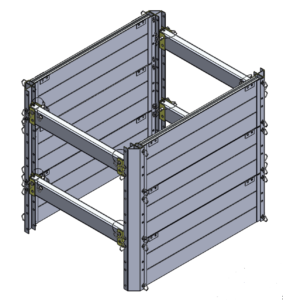

Yellow MAPS
Modular Aluminum Panel Systems – Yellow
Modular Aluminum Panel Systems – YellowThe Pacific Shoring Products Yellow Modular Aluminum Panel System is a versatile aluminum trench shoring system designed for maximum adaptability in the field. It features 2.8” x 8” tongue-andgroove panels, corner posts, and an end strut system, enabling assembly in 2-sided, 3-sided, or 4-sided configurations. All components, panels, posts, and struts are secured using pin connections, allowing for quick on-site construction, adjustment, and disassembly.
Panel lengths range from 2 ft. to 16 ft, while corner posts are available in lengths from 2 ft. to 12 ft. The system is stackable and suitable for trench depths of up to 25 ft. Compatible strut options include hand-adjustable struts, static struts, and hydraulic struts capable of expanding to a maximum width of 12 ft. In a 4-sided layout, the system can accommodate dimensions up to 16 ft. x 16 ft.
The Modular Aluminum Panel System can be deployed in either a static or dynamic shoring configuration. In a static configuration, the system provides structural support without direct contact between the shield walls and the excavation sides. In contrast, the dynamic configuration uses pressurized shield walls to engage the surrounding soil, inducing soil arching and transferring pressure to the corners. This reduces wall loading, allows for slightly longer spans, and minimizes the risk of wall collapse and damage to adjacent utilities.
Ideal for utility work, the system excels in environments with constantly changing excavation conditions and geometry. Components are lightweight and manageable by a single person, and assembled units can be positioned using standard backhoes. The modular design allows for easy transport on standard trucks and quick setup as site conditions evolve.
Yellow MAPS Accessories
Modular Aluminum Panel Systems Hand Rail System – Yellow
Modular Aluminum Panel Systems Hand Rail System – YellowThe Pacific Shoring Hand Rails are an additional structure that can be added to shoring boxes by use of extended corners. When properly installed, the hand rails extend 42” from the top of the excavation. The top of the box acts as a kick guard. A gate can be used which measures 2ft wide.
Yellow MAPS Cutouts
Modular Aluminum Panel Systems Cutouts – Yellow
The Pacific Shoring Modular Buildable Box Cutouts – Yellow is a welded smooth wall assembly with a cutout ranging from 2 to 4 feet in width and height. These panel assemblies fit in place of modular aluminum buildable box panels. Yellow Buildable box cutouts can be used at one or multiple wall lines.
Yellow MAPS Sheeting Guide
Modular Aluminum Panel Systems Sheeting Guide – Yellow
Modular Aluminum Panel Systems Sheeting Guide – YellowThe Pacific Shoring Modular Buildable Box Sheeting Guide is an aluminum sheet pile guide system that fits in place of one of the buildable box panels. This allows a line of sheet piles to be placed up to and over obstructions such as cross trench lines. The guide frame may be used at one or multiple wall lines. The sheeting can be installed by hand and may be skipped or interlocked provided there is no sloughing or raveling through the cracks. There are filler panels that fit in the corners where the sheeting ends. The sheeting guide frame comes in all lengths that modular panels are available in.
Yellow MAPS Davit Arm Adapter
Yellow MAPS Davit Arm Adapter
Yellow MAPS Davit Arm AdapterThe Pacific Shoring Products Davit Arm Adapter allows the Xtripa IN-2482 Shoring Adapter and the Xtripa IN-2483 Davit Arm to be utilized with our Modular Aluminum Panel Systems. The steel davit arm adapter protects the aluminum panel sections from damage while providing a robust mounting surface for the Xtripa IN-2482 Shoring Adapter. The Xtripa system is part of a personal protection equipment system for fall protection, work positioning, or rescue, for use in confined spaces.

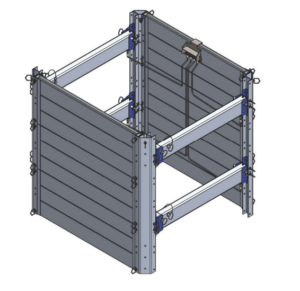

MAPS End Loading Addendum
MAPS End Loading Addendum
MAPS End Loading Addendum
